Liquid Manure Injection Toolbars

Phil’s Pumping & Fab presents several liquid manure injection equipment options, including splash pan/incorporation bars, Pottinger Terradiscs, and heavy duty direct injection toolbars. Our tractor-mounted toolbars promote efficient topdressing application, splash/incorporation, or deep till injection of liquid manure.

Phil’s 28′ Pottinger Manure Incorporation Disc

  • 23″ Notched Disc Blades
  • Twin arm retains disc angle.
  • 8″ Trueline Valve for Flow Stoppage and Clean Out of Manifold
  • Six, 4″ splash pans prevent block-ups.
  • Splash pans in front provide even application followed immediately by disc incorporation.
  • An 8′ center section, built-in house accommodates larger tractors.

More information coming soon!

Phil’s 20′ Pottinger Incorporation Disc

  • 23″ Notched Disc Blades
  • Twin arm retains disc angle.
  • 6″ Trueline Valve for Flow Stoppage
  • Hydraulically-Operated 6″ Brass Clean Out Valve for Pig Launcher
  • Four-inch splash pans prevent block-ups.
  • Splash pans in front provide even application followed immediately by disc incorporation.
  • Flow Meter Accessible

Applying Manure

More Manure Incorporation

Additional Manure Application Footage

More information coming soon!

Phil’s 20′ Amazone Incorporation Disc

  • 6″ Blowout Valve on Swing Tube
  • 6″ Trueline Valve for Flow Stoppage
  • Outside swing tube stops mounted toward center of axle. This allows swing tube to come forward and ease tension on turns.
  • Hydraulically-Operated 6″ Brass Clean Out Valve for Pig Launcher
  • Four-inch splash pans prevent block-ups.
  • Four splash pans in front provide even application followed immediately by disc incorporation.
  • Flow Meter Accessible (Sold Separately)





More information coming soon!

Phil’s 18′ Incorporation Bar/30′ Splash Pan

  • 18′ Wide, 13 Shanks
  • Main Greaseable Heavy Duty Swivel
  • (NEW) Sealed Greaseable Low Profile Double Swivel
  • Brillion “Chisel Plow” Shanks with 4″ Twisted Shovels
  • Hydraulically-Operated 6″ Clean Out Valve for Pig Launcher
  • Flow Meter Ready
  • Four splash pans in front cover bar width, and four splash pans in rear cover 30 feet.

More information coming soon!

Phil’s 15′ Incorporation Bar/30′ Splash Pan

  • 15′ Wide, 11 Shanks
  • Main Greaseable Heavy Duty Swivel
  • (NEW) Sealed Greaseable Low Profile Double Swivel
  • Brillion “Chisel Plow” Shanks with 4″ Twisted Shovels
  • Hydraulically-Operated 6″ Clean Out Valve for Pig Launcher
  • Flow Meter Ready
  • Four splash pans in front cover bar width, and four splash pans in rear cover 30 feet.

More information coming soon!

Phil’s 15′ Brillion Shank Series Injection Toolbar

  • 15′ Wide, 6 Shanks
  • 3-Point with Heavy Duty Injection Tubes
  • Brillion “Zone Commander” Auto Reset Shanks
  • Hydraulic Driven Manifold for Even Distribution
  • 6″ Swing Arm with Double Pivot
  • Flow Meter Ready
  • 4″ Discharge Lines and Injection Tubes

More information coming soon!

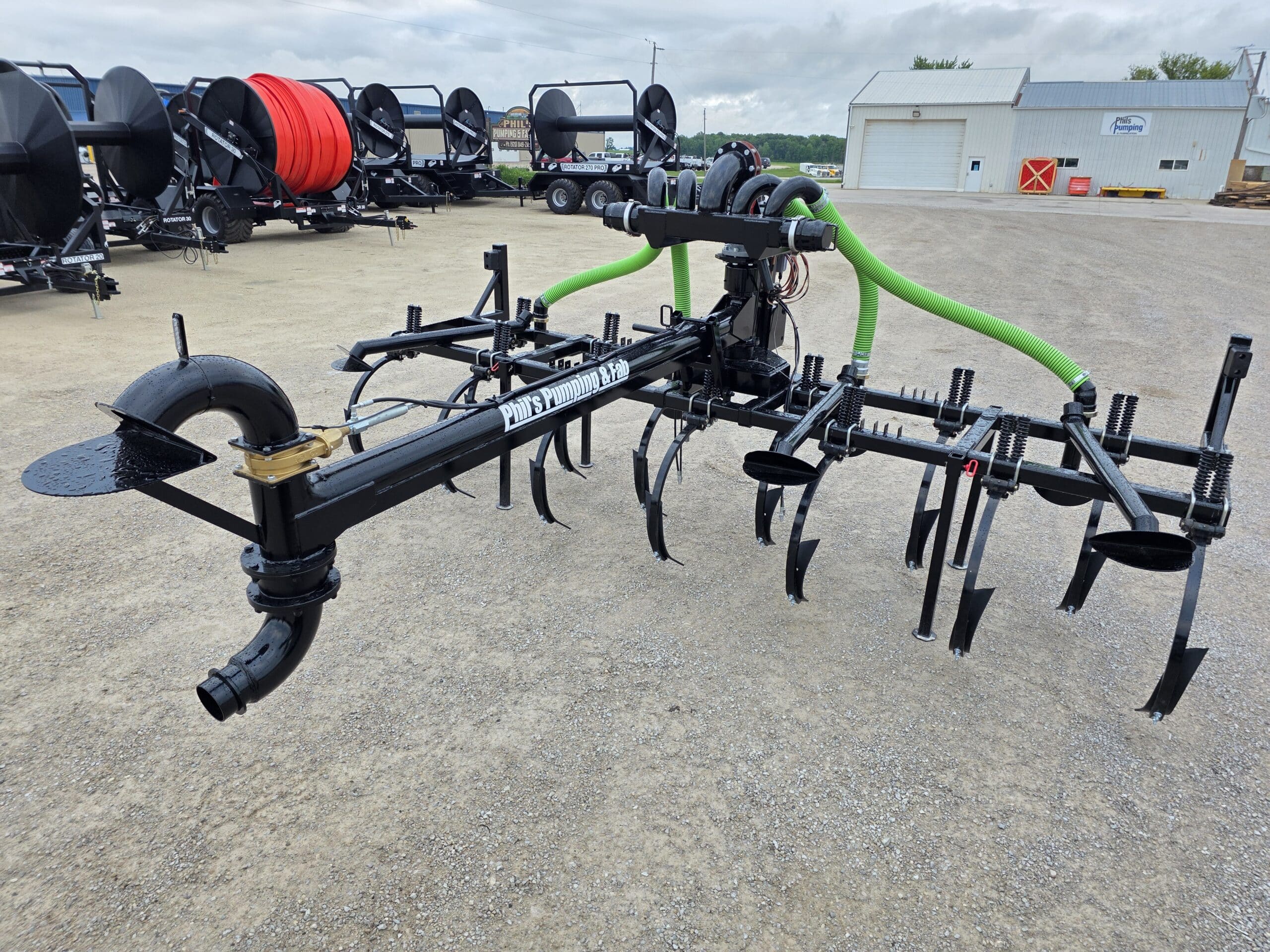

Phil’s 18′ Dietrich Shank Series 70 Toolbar

  • 18ft Wide Vertical Tillage Bar
    • 9 Dietrich Series 70 Shanks Auto Resets
    • 8″ High Rate Sweep
    • Sealed Double Swivel
    • Splash Pan for Top Spreading
    • 6″ Trueline Valve for Flow Stoppage
    • Hydraulically-Operated 6″ Brass Clean Out Valve for Pig Launcher
    • 3″ Hoses from Diverter Box to Outlets
    • Flow Meter Ready

More information coming soon!

Phil’s 26′ Dietrich Shank Series 70 Folding Toolbar

13 Shanks Spaced 24″ Staggered on 2 Rows
8″ High Rate Chisel Sweeps
Category 4 Quick Hitch Hook-Up
Auto Reversing Debris Chopper Distribution Box with 13, 3″ Ports
6″ Mounted Swing Pipe with Rear Valve & Pig Launcher, Plus Splash Pan
4 Gauge Wheels 20.5 x 8-10, 10 Ply

VIEW UP CLOSE

More information coming soon!
